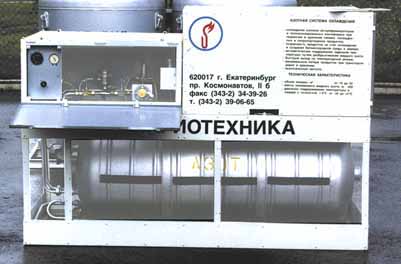

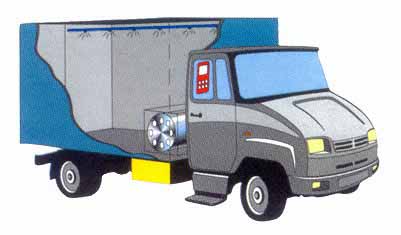

The systems are installed in heat-insulating chambers and are intended for storage and transportation of pre-cooled or frozen products at temperatures from 5 deg C above o to 20 deg C below 0.
The product is ecologically safe.
Storage and transportation of the products in gaseous nitrogen neutral fluid provide for fine and long-term storage.
|
САО-0,25 |
САО-0,16 |
|
|
Capacity of vessel for liquefied nitrogen, litr |
250 |
170 |
|
Mass of nitrogen, to be filled, kg |
200 |
130 |
|
Basket net capacity, m3 |
up to 20 |
up to15 |
|
Automatically temperatures inside isometric basket, degrees C |
5 above 0 to 20 below 0 |
|
|
Working pressure, kgs/cm2 |
1,5 -2 |
|
|
Overall dimensions (length, width, height), m |
2,05х0,80х0,78 |
1,55х0,80х0,78 |
|
Weight of vessel with liquefied nitrogen, kg |
290 |
220 |
